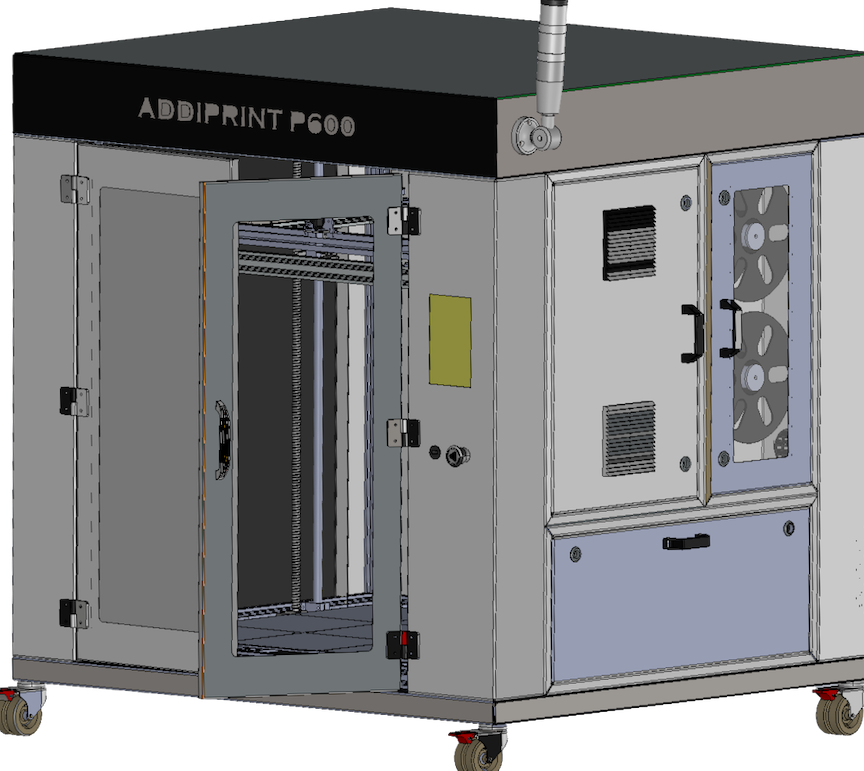

AddiPrint F600
A multi-material FFF 3D printer 'Robust Enough' that can be used for professional & Industrial applications, and 'Smart Enough' to build up your own prototypes or functional parts at the utmost best quality in FDM with state-of-the-art smart technologies with large build volume. Now Break All Price Barriers with part costs, build speeds, accuracy, surface finish, and material properties finally revealing traditional manufacturing methods.
Technical Specifications
| Description | Details | |
| Print Technology Build Volume MachineSize Filament Diameter NozzleSizes Layer Height | Fused Deposition Modelling 600x600x650mm(X,Y,Z) 970x910x1540mm 1.75mm 0.4/0.5/0.6/0.8mm/Brass/HardenedSteel 0.08mm to 0.2mm(for 0.04mmNozzle) varies based on Nozzle size | |
| Build Plate Heated Bed Max Temp Extruders & Hot End Primary Extruders Max Temp Secondry Extruders Max Temp Heating Chamber | Hardened Aluminum heated bed with Magnetic PEI sheet 120 Degree C Dual Direct Drive All Metal Extruders Upto 450 Degree C Upto 300 Degree C Controlled heated enviornment up 60DegreeC | |
| X/Y Positional Accuracy Z Positional Accuracy Print Head Travel Speed | 20 Microns 5 Microns 20mm/sto120mm/s | |
Materials
| PP, PA, PLA, ABS, PETG, , TPU, TPE, PC, Nylon ASA, Carbon Fibre Infused, Glass Fibre Infused | |
| Casing Processor Screen Software | Aluminum 32Bit ARMCortexM4 7inchFull viewcolor DisplayTouchScreen
|
© 2023 All rights reserved.
| Build Volume | Build Speed | Layer Thickness | Dimensional Accuracy | Minimum Size Feature | |
| 15 x 11.2 X 15 inch | Upto 5058 cm3/hr | 0.08 mm | +-0.3% | (0.5mm) | |
| (380 X 284 X 380 mm) | (309 in3/hr) | (0.003 in) | 0.3 mm (+10.0.12in) | 0.020 in | |
| Build Volume | Build Speed | Layer Thickness | Dimensional Accuracy | Minimum Size Feature | |
| 15 x 11.2 X 15 inch | Upto 5058 cm3/hr | 0.08 mm | +-0.3% | (0.5mm) | |
| (380 X 284 X 380 mm) | (309 in3/hr) | (0.003 in) | 0.3 mm (+10.0.12in) | 0.020 in | |
