HP MultiJet Fusion (MJF) 3D Printer
HP Multi Jet Fusion 3D printer utilises powdered thermoplastic material to create accurate, complex, and finely detailed parts. Our high-quality thermoplastics deliver optimal mechanical properties and chemical resistance, producing parts with balanced property profiles and strong structures.
When manufactured layer-by-layer in a powder bed, MJF uses a combination of binding agents and energy, allowing for several levels of biocompatibility.
MJF Capabilities
|
|
|
|
| ||
|---|---|---|---|---|---|
|
|
Build Voulme | Build Speed | Layer Thickness | Dimensional Accuracy | Minimum Feature Size |
|
|
15 x 11.2 x 15 in | Up to 5058 cm3/hr | 0.08 mm | ± 0.3% with a lower limit of ± | (0.5mm) |
|
|
(380 x 284 x 380 mm) | (309 in3/hr) | (0.003 in) | (0.003 in) | 0.020 in |
| Material | Tensile Strength | Elongation at Break | Heat Deflection Temperature | |
| PA 12 (Nylon PA 12) | 48 MPa | 9-17 % | 95°C-175°C | |
| PA 12 White | 49 MPa | 15-20 % | 95°C-175°C | |
| PA 11 (Nylon PA 11) | 52 MPa | 35-50 % | 54°C-185°C | |
| BASF ULTRASINT TPU | 9 MPa | 120-220 % | 50°C-65°C |
MJF 3D Printing Polymer Parts

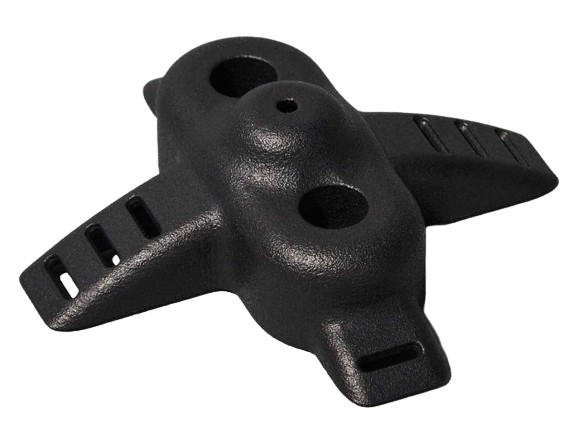

PA12

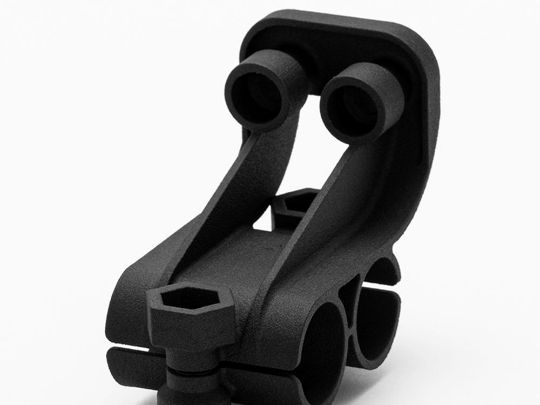

PA11

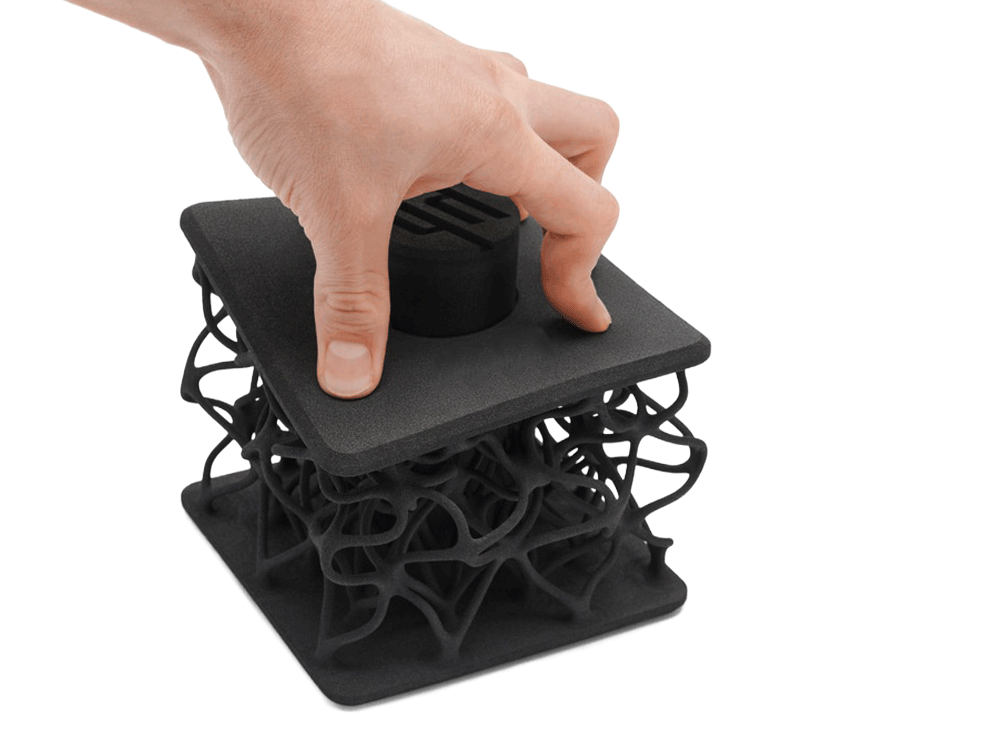

BASF TPU
| Build Volume | Build Speed | Layer Thickness | Dimensional Accuracy | Minimum Size Feature | |
| 15 x 11.2 X 15 inch | Upto 5058 cm3/hr | 0.08 mm | +-0.3% | (0.5mm) | |
| (380 X 284 X 380 mm) | (309 in3/hr) | (0.003 in) | 0.3 mm (+10.0.12in) | 0.020 in | |
