Sintering in Fused Filament Fabrication (FFF) 3D printing involves using heat to fuse small particles of material into a solid structure. While FFF traditionally uses thermoplastic filaments that are melted and extruded to form layers, "SmartOne" might refer to a specific material or technology involving sintering in FFF.

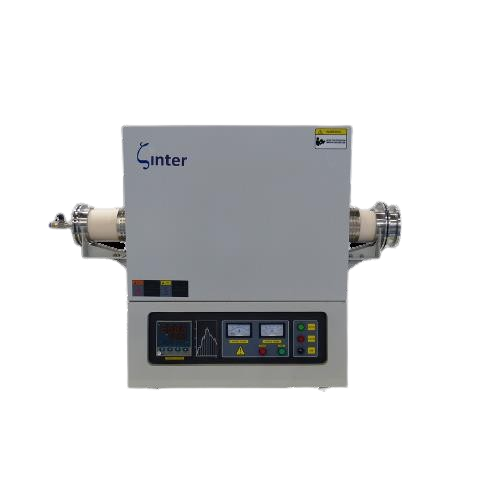

Sinter

Charcterstics of Sinter:

  • Tubediameter: 100mm
  •  Maximum operating temperature:  1650°C
  • WorkingTemperature: 1600°C
  • Temperature controller accuracy : (+/-)1°C
  • Power : 220V32A50Hz
  • Tubelength: 100cmtotal length
  • Working heatingzone: 100mm
  • Heating Power: 6KW

The debinding process is a crucial step in preparing parts for sintering, especially when using materials that include binders to hold the particles together.

Debinder

Charcterstics of Debinder:

  • Temperature Range: 20°C to 80°C
  •  Dimensions : 320 x 160 x 320 mm
  •  Humidity : < 70 % (non-condensing)

Technical Specifications

DescriptionDetails
Print Technology
Build Volume
MachineSize
Filament Diameter
NozzleSizes
Layer Height
Fused Deposition Modelling
500x500x500mm(X,Y,Z)
970x910x1540mm
1.75mm
0.4/0.5/0.6/0.8mm/Brass/HardenedSteel
0.08mm to 0.2mm(for 0.04mmNozzle) varies based on Nozzle size
Build Plate
Heated Bed Max Temp
Extruders & Hot End
Primary Extruders Max Temp
Secondry Extruders Max Temp
Heating Chamber
Hardened Aluminum heated bed with Magnetic PEI sheet
120 Degree C
Dual Direct Drive All Metal Extruders
Upto 450 Degree C
Upto 300 Degree C
Controlled heated enviornment up 60DegreeC
X/Y Positional Accuracy
Z Positional Accuracy
Print Head Travel Speed
20 Microns
5 Microns
20mm/sto120mm/s
Materials
  • STD Polymers
  • ENGG Polymers
  • Support Polymers
  • Ceramic
  • Metal
PLA, ABS, PETG, WoodFill, TPU, TPE, PC, Nylon
ASA, Carbon Fibre Infused, Glass Fibre Infused,
HIPS, PVA, Aquateck PVA, Thermax HTS High Temp
White Zirconia, Black Zirconia, Alumina
SS-17-4, SS-316-L, Copper, Bronze, Inconel 718, H13
Casing
Processor
Screen
Software
Aluminum
32Bit ARMCortexM4
7inchFull viewcolor DisplayTouchScreen
  1. SlicingSoftware- Simplify3D
  2. Input FileFormat - STL/OBJ/3MF
  3. OperatingSoftware- Windows, Mac, Linux
  4. Output FileFormat - Gcode
CRM form will load here
Build VolumeBuild SpeedLayer ThicknessDimensional AccuracyMinimum Size Feature
15 x 11.2 X 15 inchUpto 5058 cm3/hr0.08 mm+-0.3%(0.5mm)
(380 X 284 X 380 mm)(309 in3/hr)(0.003 in)0.3 mm (+10.0.12in)0.020 in
Build VolumeBuild SpeedLayer ThicknessDimensional AccuracyMinimum Size Feature
15 x 11.2 X 15 inchUpto 5058 cm3/hr0.08 mm+-0.3%(0.5mm)
(380 X 284 X 380 mm)(309 in3/hr)(0.003 in)0.3 mm (+10.0.12in)0.020 in
